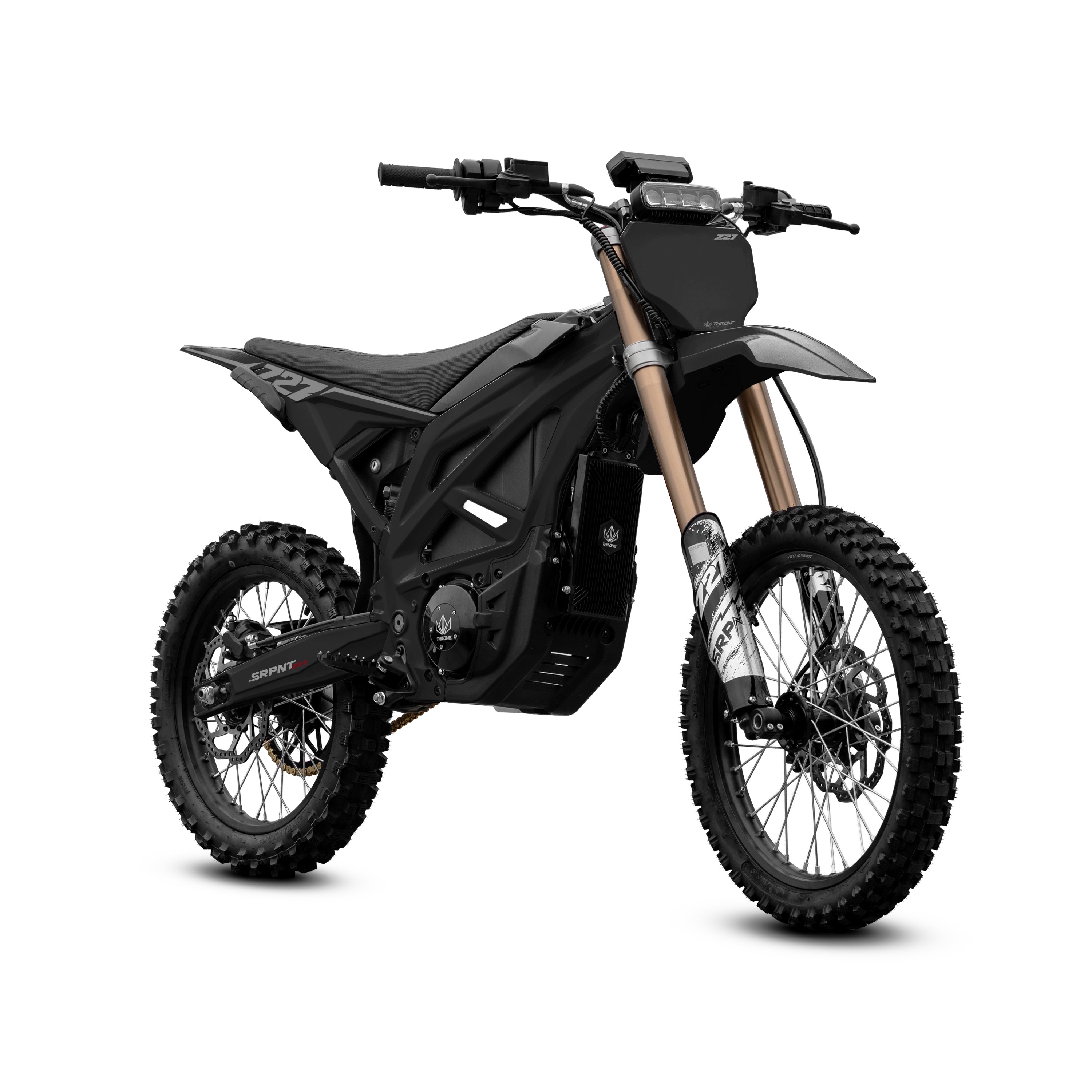

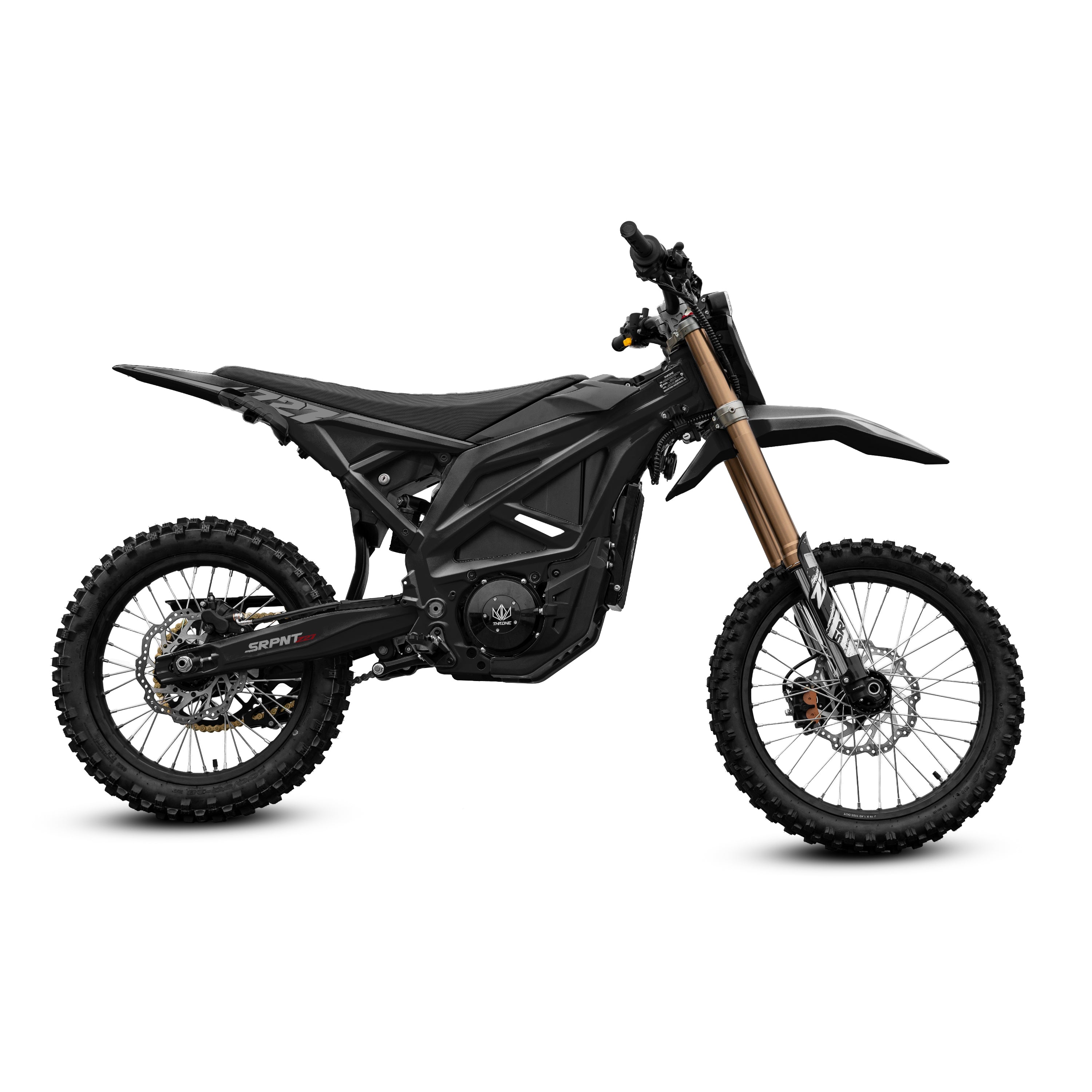

SRPNT Z27 - Black Oro
SRPNT Z27 - Black Oro

Throne Cycles

SRPNT Z27 - Black Oro

$ 5,499.00
MOTOR
Motor: 27KW
Mounting Position: Mid
Weight / Motor External Diameter: 12.75 kg/164.5mm
Cooling Method: Air-Cooling
CONTROLLER
Controller Type: PMSM
Dimensions: 271X128X58mm
Power Modes: High / Drive / Eco / Reverse
MOTOR POWER SYSTEM
Rated Voltage: 72V (DC)
Rated Torque / Peak Torque: 34/155N.m
Motor Shaft Output Torque @ 1000RPM 54N.m
Rated Rotation Speed: 6800RPM
TRANSMISSION
Gear Ratio: 13:48
Transmission: 520  Drive Chain
ELECTRICAL COMPONENTS
Horn: 12v CQC
Battery: 72V60AH Battery with SAMSUNG Cells
Battery Life Time: 600 Cycles
Charger: 10A
Charging Time: 6H  Hours
USB Connection: USB+Type C
LED Headlight & Rear Light: Yes
FRAME DETAILS
Chassis - Swing Arm Material: No.6061 T4&T6 Aluminum
Chassis Construction Method: Forged by 3000 Tons of Pressure
Chassis Surface & Color Processing: Baked paint
Front Suspension: Inverted Suspension Fork with 240mm Travel
Rear Shock Absorber: KKE Suspension Link System
Wheel Type & Size: F: 1.4-19  / R: 1.85-18  Alloy Hubs
Tire Size: F: 80/100-19 / R: 100/90-18
Top Speed: 80mph
Net Weight: 210lbs
Max Climb: 65 degrees
Rear Sprocket: 48T
Side Stand: Yes, with a kill switch
Ground Clearance: 300mm
Wheelbase: 1380mm
Seat Height: 880mm
